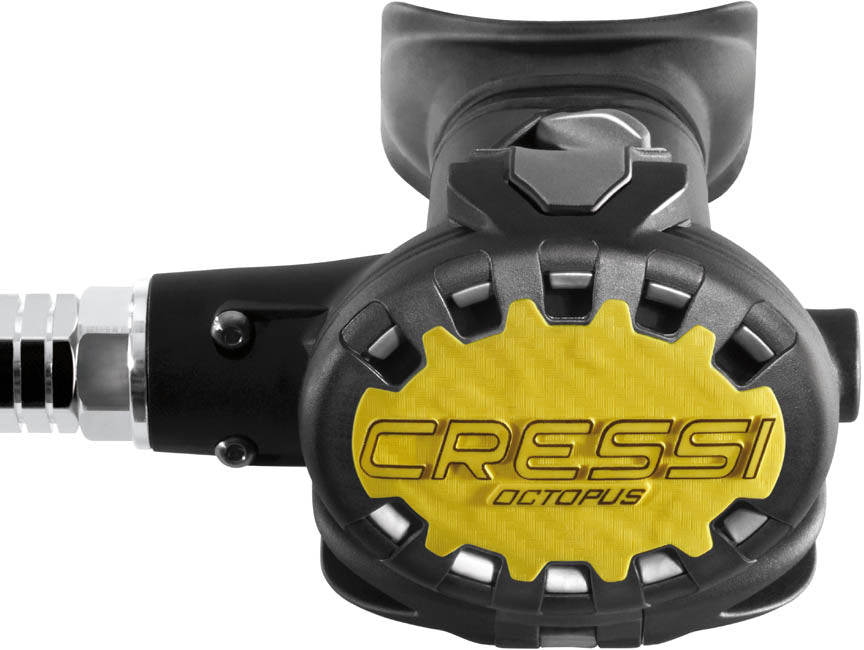

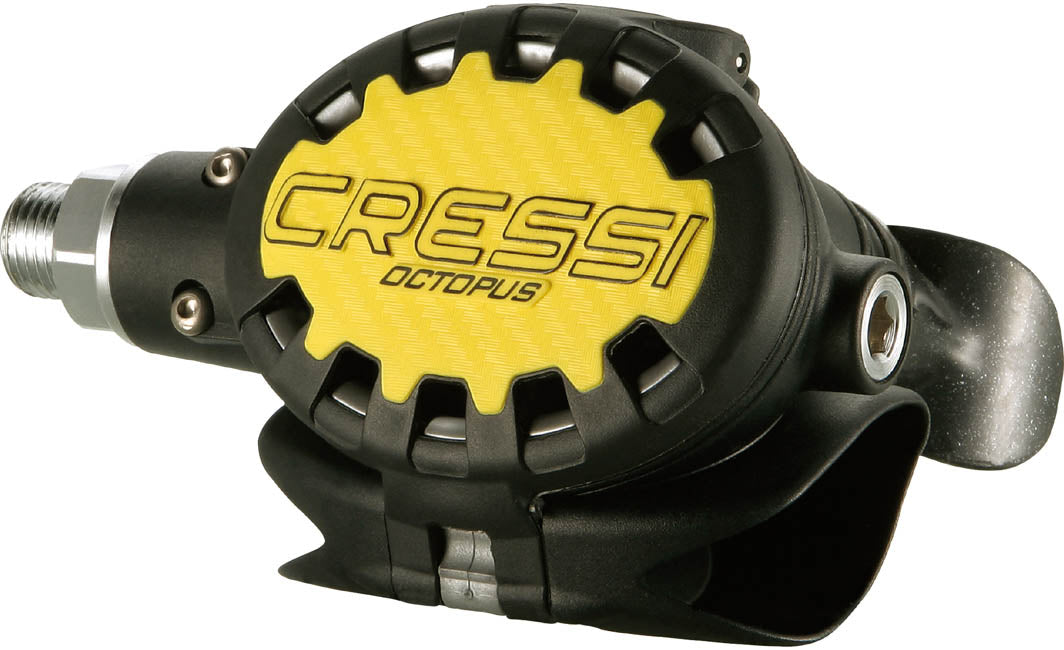

Cressi Ellipse Octopus
Cressi Ellipse Octopus
Octopus Ellipse suits all the Cressi first stages perfectly and all the first stages with an intermediate pressure between 9 and 10 bar.
Octopus Ellipse is made from special hi-tech polymers

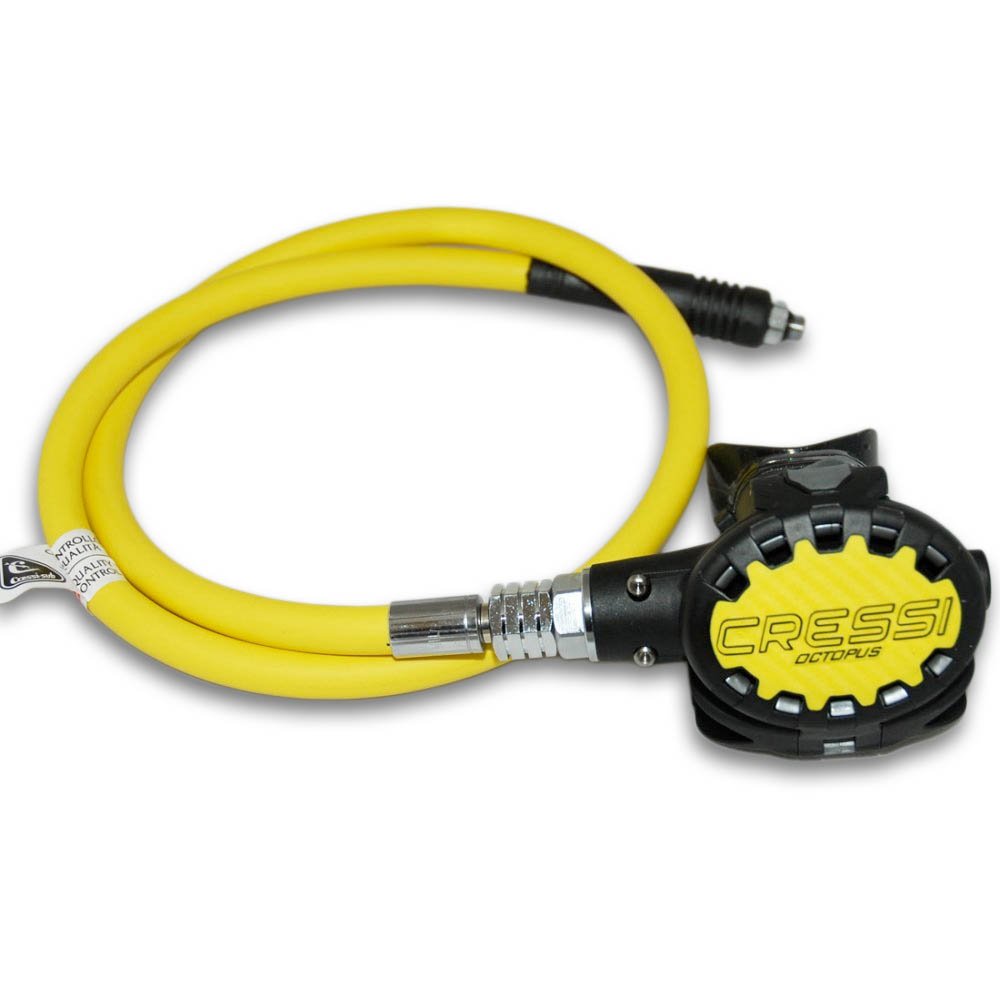

The hose is 100cm (Standard is 76cm) and is bright yellow so easy to see underwater.
Ellipse has a fold-out opening of the casing, special folding diaphragm, a computer designed lever, tilting movement of the piston, a seal between regulator valve and casing, and the ability to extract the entire valve system from the body of the 2nd stage.
Performance is enhanced by a flow of pilot air which is channelled to the mouthpiece by injection. The upper part of the body has a flow deviator that acts on the Venturi effect, with dive/pre-dive function.
The calibration is regulated to prevent any self-regulating possibility when it is used as a spare regulator.
Ellipse 2nd stage
- Calibration pressure 9-10 bar
- Average inhale effort (*) 8 mbar
- Average exhale effort (*) 11 mbar
- Average breathing work (*) 1.3 J/l
- Air supply 1300 l/m Weight (without hose) 166 g
(*)values measured in compliance with UNI EN 250 standards.
